Thank you for your purchase of Kondex Straw Claw® chopper blades!

Before beginning this procedure, set parking brake, turn engine OFF, and remove the key. If chopper is raised, use lift actuator to snap lock-out pins in place. Keep hands and feet clear of area below chopper.

WARNING! Blades are sharp. Wear gloves when handling.

NOTICE: Chopper must be balanced or machine damage may occur. Refer to your combine owner’s manual for balancing instructions.

WARNING! If blades become loose they could fly off rotor drum at high speed, causing injury. Use a torque wrench to ensure proper torque on lock nuts in accordance with your owner's manual. See the specifications below for Kondex-provided hardware.

Kondex-Provided Hardware Torque Settings

Case IH

Kondex Kit 711-092

  • OEM Replacement: 47796266
  • Bolt Part #: 920-065
  • Bolt Description: Screw, Flanged Hex, M12-1.75x45mm
  • Bolt Quantity: 6
  • Nut Part #: 920-061
  • Nut Description: M12 x 1.75 Hex Flange Nut
  • Nut Quantity: 6
  • Assembly Torque Range: 85-100 lb ft. (115-135 N*m)

Kondex Kit 711-082

  • OEM Replacement: 47677377
  • Bolt Part #: 920-808
  • Bolt Description: Bolt, Flange M16 x 50 10.9 ZND
  • Bolt Quantity: 4
  • Nut Part #: 920-811
  • Nut Description: Nut, Flange P/T M16x2 10.9 ZND
  • Nut Quantity: 4
  • Assembly Torque Range: 205-225 lb ft. (278-305 N*m)

Kondex Kit 711-081

  • OEM Replacements: 87280980, 87280494, 86699627
  • Bolt Part #: 920-078
  • Bolt Description: M12 X 1.75 X 30mm Hex Flange Bolt
  • Bolt Quantity: 4
  • Nut Part #: 920-061
  • Nut Description: M12 X 1.75 Hex Flange Nut
  • Nut Quantity: 4
  • Assembly Torque Range: 85-100 lb ft. (115-135 N*m)

Kondex Kit 711-080

  • OEM Replacement: 442832A1
  • Bolt Part #: 920-001
  • Bolt Description: Screw, Flanged Hex, M12 X 25mm LG
  • Bolt Quantity: 4
  • Nut Part #: 920-061
  • Nut Description: M12 X 1.75 Hex Flange Nut
  • Nut Quantity: 4
  • Assembly Torque Range: 85-100 lb ft. (115-135 N*m)



John Deere

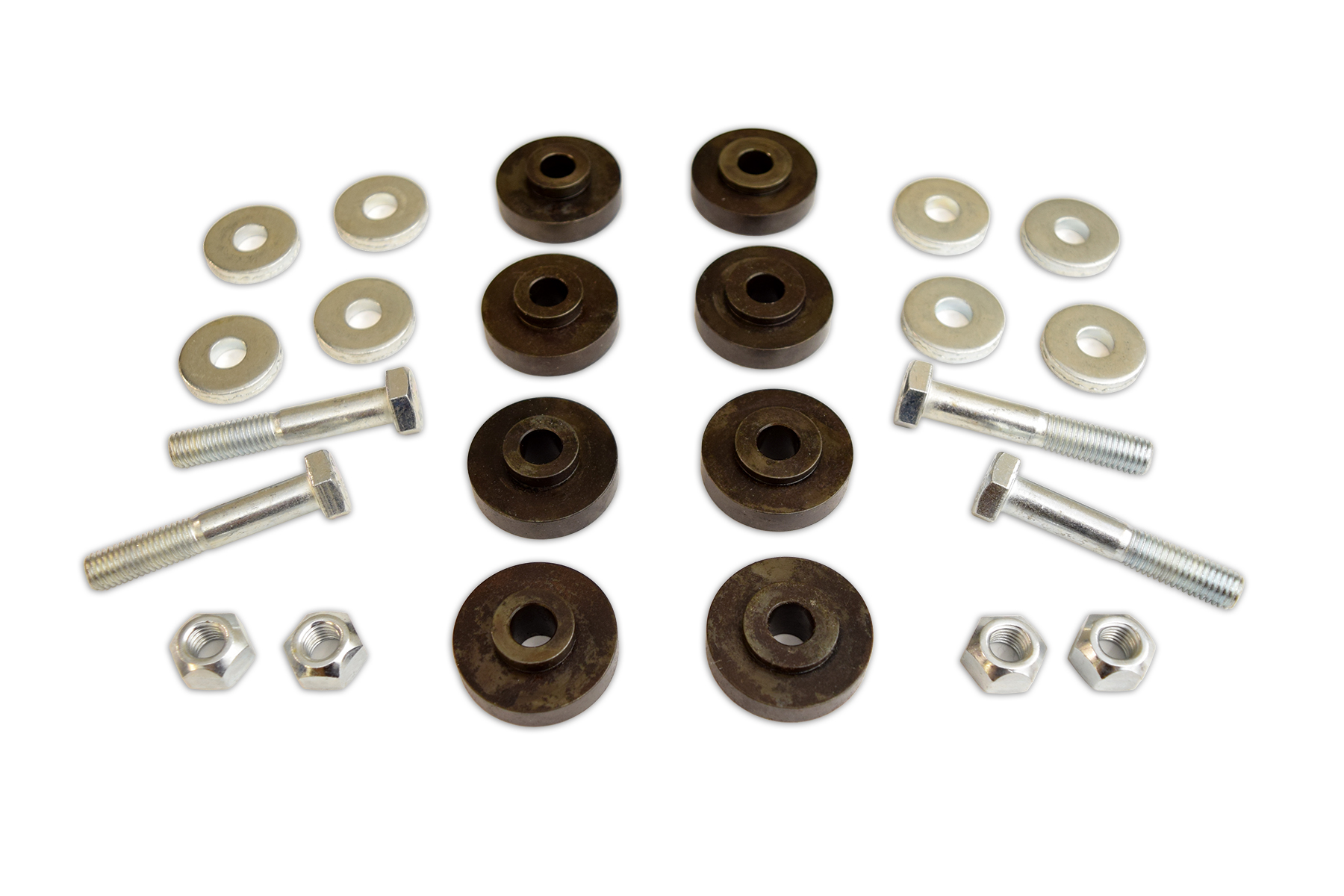

Kondex Kit 711-177

  • Bolt Part #: 920-889
  • Bolt Description: Cap Screw, Hex Head, M10-1.5 X 60
  • Bolt Quantity: 4
  • Nut Part #: 920-890
  • Nut Description: Locknut, Hex, M10-1.5
  • Nut Quantity: 4
  • Assembly Torque Range: 44-48 lb ft. (60-65 N*m)

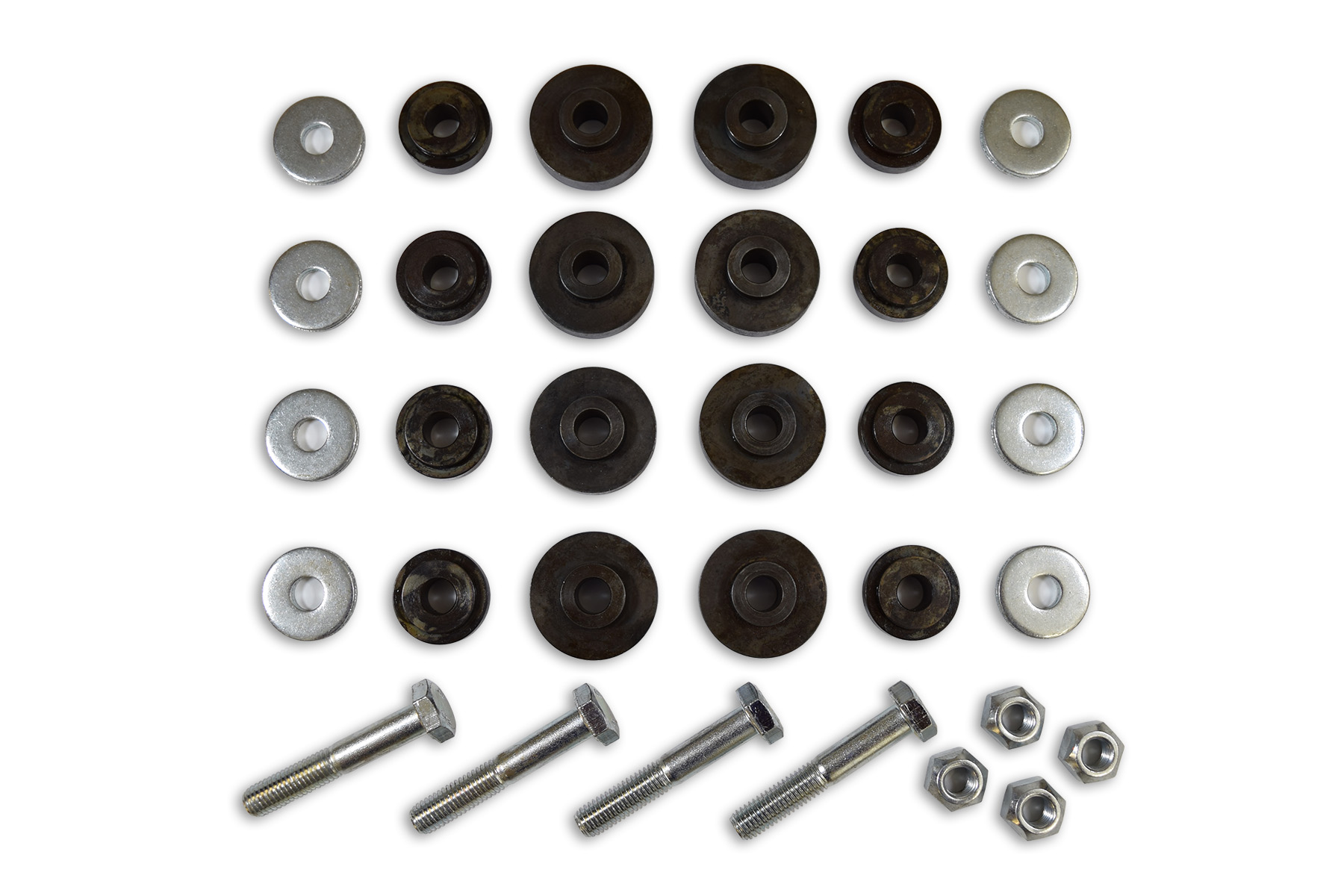

Kondex Kit 711-178

  • Bolt Part #: 920-889
  • Bolt Description: Cap Screw, Hex Head, M10-1.5 X 60
  • Bolt Quantity: 4
  • Nut Part #: 920-890
  • Nut Description: Locknut, Hex, M10-1.5
  • Nut Quantity: 4
  • Assembly Torque Range: 44-48 lb ft. (60-65 N*m)

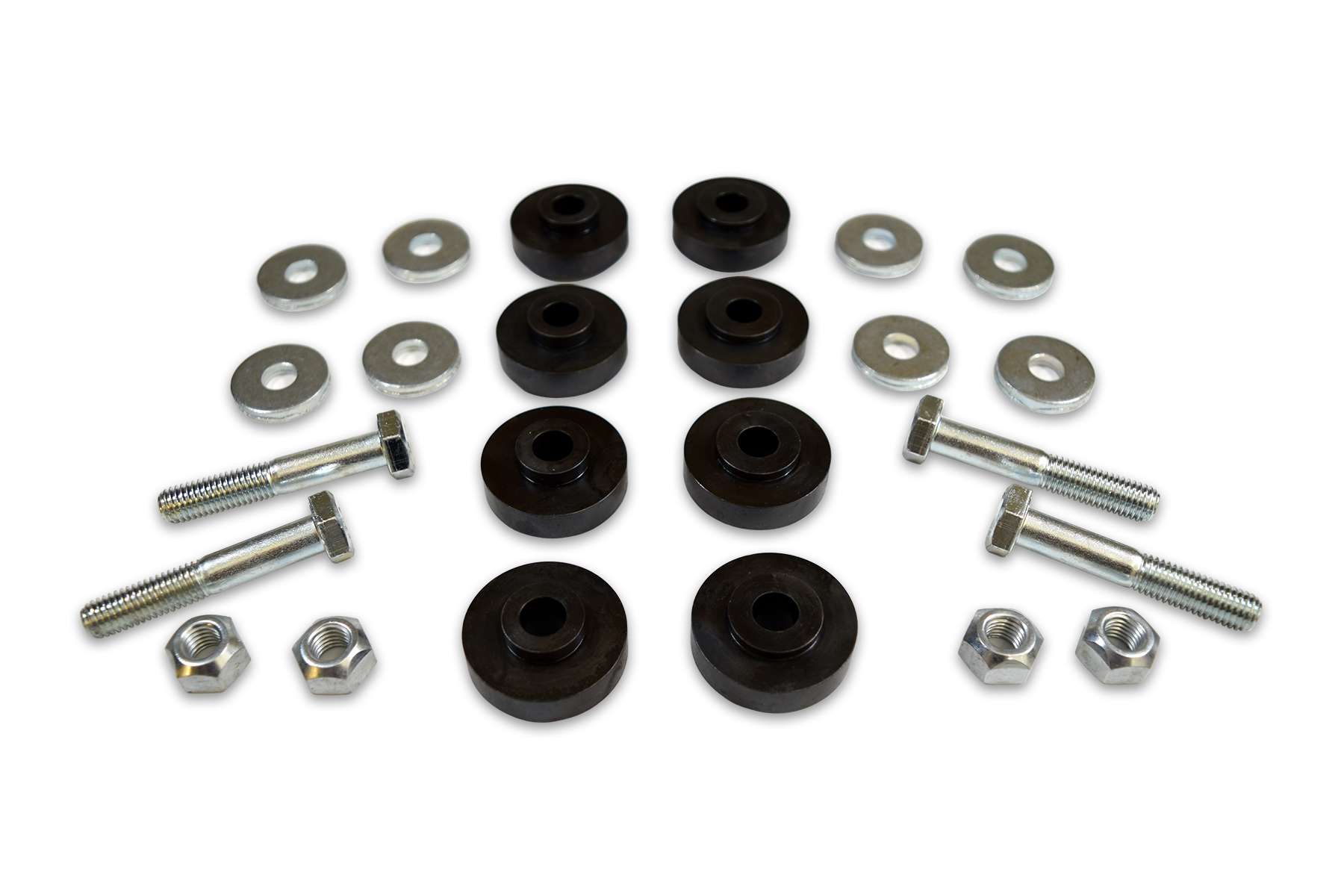

Kondex Kit 711-179

  • Bolt Part #: 920-889
  • Bolt Description: Cap Screw, Hex Head, M10-1.5 X 60
  • Bolt Quantity: 4
  • Nut Part #: 920-890
  • Nut Description: Locknut, Hex, M10-1.5
  • Nut Quantity: 4
  • Assembly Torque Range: 44-48 lb ft. (60-65 N*m)

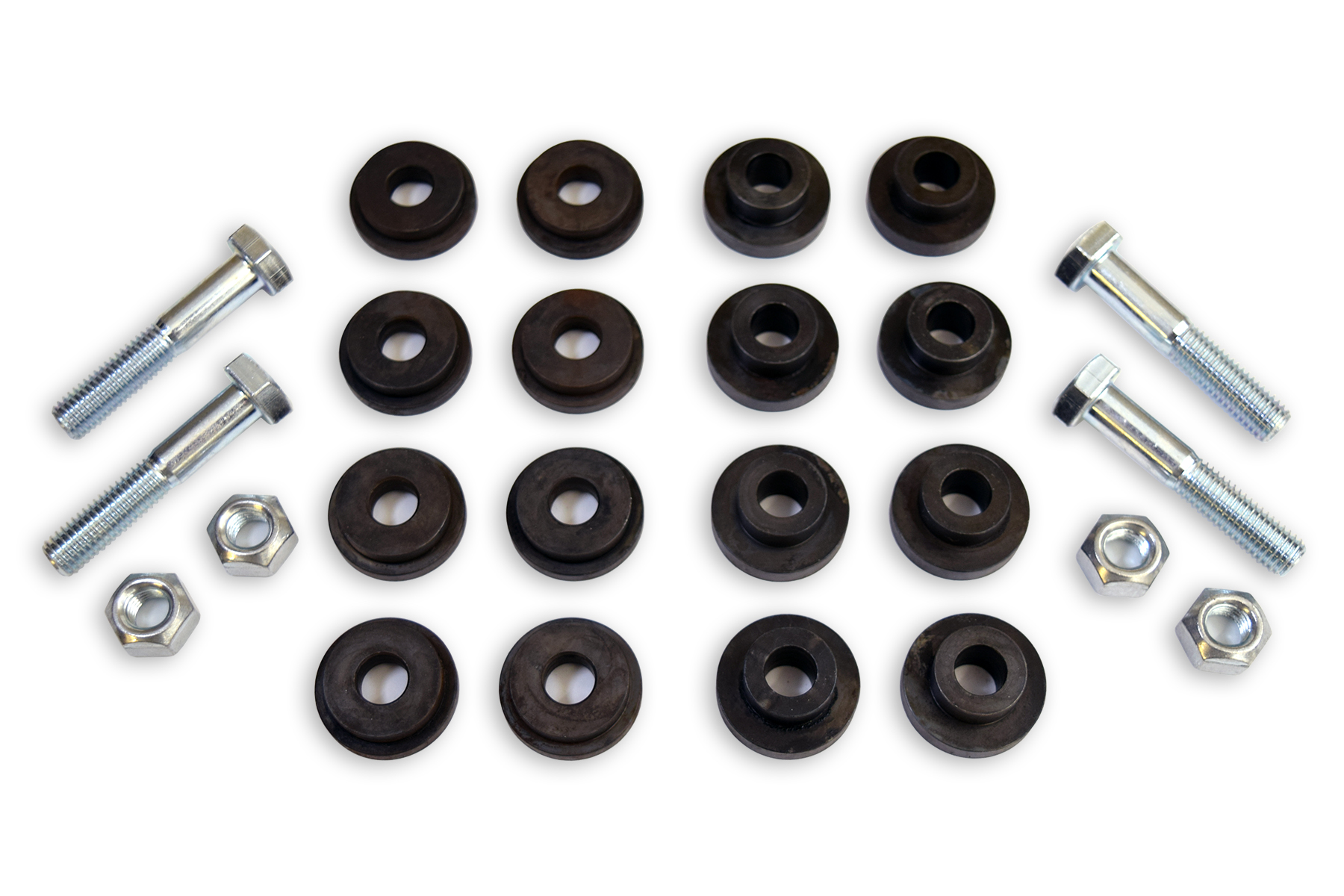

Kondex Kit 711-180

  • Bolt Part #: 920-888
  • Bolt Description: Cap Screw, Hex Head, M10-1.5 X 55
  • Bolt Quantity: 4
  • Nut Part #: 920-890
  • Nut Description: Locknut, Hex, M10-1.5
  • Nut Quantity: 4
  • Assembly Torque Range: 44-48 lb ft. (60-65 N*m)
