Your Recommended Configuration

Case IH™ 9240

Harvesting: Canola, Corn Dry (15% or less), Soybeans, Wheat Normal

Your Recommended Configuration

We’ve put together the most cost-effective way to buy KX7 concaves for your specific crops and equipment. Scroll down to view the kit recommendations and any additional components you will need to adjust configurations between crops.

Canola Configuration

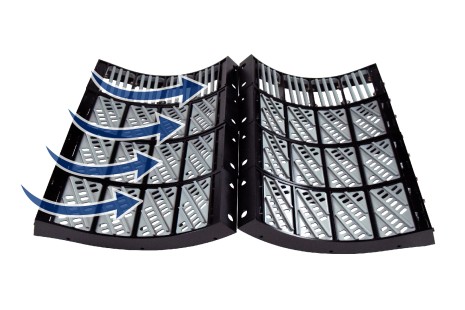

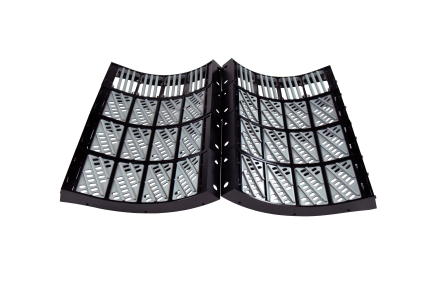

Kit: 716-054

Parts needed to configure KX7 for your crops
Position	Concave Part No.
LH 1-03	BA1-X25
RH 1-03	BA1-X15
LH 4	BA1-R25
RH 4	BA1-R15

Details

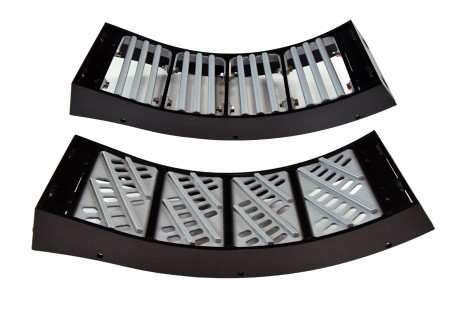

This small grain kit is ideal for harvesting canola. The helical design of our MaxThresh™ and MaxRound™ concaves provides more efficient threshing, increased area for separation, and improved separation to deliver a cleaner sample and reduced loss. At half the width of traditional concaves, you now have twice the configuration options and easier changeout between crops if needed. This kit includes 6 MaxThresh (3 per side) and 2 MaxRound (1 per side) assemblies.
Note: Select Case Flagship models may require a ramped front concave. Learn More Here

Corn Dry (15% or less) Configuration

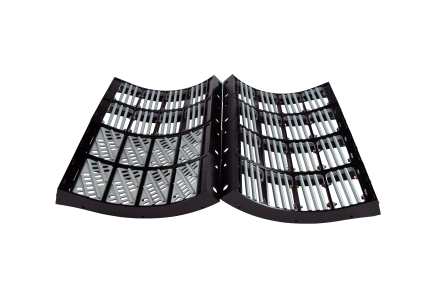

Kit: 716-057

Parts needed to configure KX7 for your crops
Position	Concave Part No.
RH 1-02	BA1-X15
LH 1-04	BA1-R25
RH 3-04	BA1-R15

Details

Get your best dry corn harvest with the improved efficiency gained from our 2 MaxThresh™ (RH only) and 6 MaxRound™ (LH and back of RH) concaves in this kit. The helical design provides more efficient threshing, increased area for separation, and improved separation to deliver a cleaner sample and reduced loss. At half the width of traditional concaves, you now have twice the configuration options and easier changeout between crops if needed.
Note: Select Case Flagship models may require a ramped front concave. Learn More Here

Soybeans Configuration

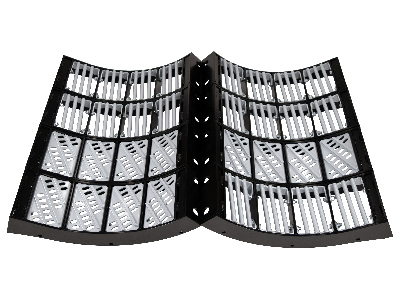

Kit: 716-101

Parts needed to configure KX7 for your crops
Position	Concave Part No.
RH 1-02	BA1-X15
LH 1-03-04	BA1-R25
LH 2	BA1-X25
RH 3-04	BA1-R15

Details

Get your best soybean harvest with KX7 concaves. Achieve a gentle boost in threshing that improves efficiency utilizing a combination of 3 MaxThresh™ (2 on right, 1 on left) and 5 MaxRound™ (2 on right, 3 on left) concaves in this kit. The helical design provides more efficient threshing, increased area for separation, and improved separation to deliver a cleaner sample and reduced loss.
Note: Select Case Flagship models may require a ramped front concave. Learn More Here

Wheat Normal Configuration

Kit: 716-054

Parts needed to configure KX7 for your crops
Position	Concave Part No.
LH 1-03	BA1-X25
RH 1-03	BA1-X15
LH 4	BA1-R25
RH 4	BA1-R15

Details

This small grain kit is ideal for harvesting dry wheat. The helical design of our MaxThresh™ and MaxRound™ concaves provides more efficient threshing, increased area for separation, and improved separation to deliver a cleaner sample and reduced loss. At half the width of traditional concaves, you now have twice the configuration options and easier changeout between crops if needed. This kit includes 6 MaxThresh (3 per side) and 2 MaxRound (1 per side) assemblies.
Note: Select Case Flagship models may require a ramped front concave. Learn More Here
